Description

Analog, Vintage, and Classic – while their names might sound similar, these three chorus effects bring back sounds from the past. This time, they’re voiced to sit comfortably with your acoustic’s beautiful resonances.

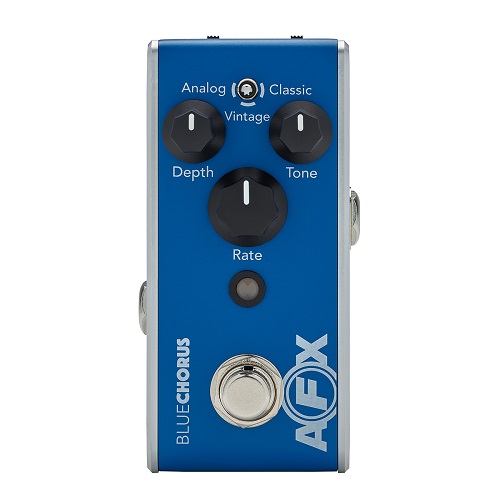

Create anywhere from subtle doubling effects to a full acoustic ensemble behind you. AFX BlueChorus features a Rate control that sets the speed of each effect and a Depth control that blends it perfectly into your mix.

A Tone control rolls-off the high frequencies of each effect – but not your acoustic sound – when you want to thicken up your sound but retain the definition of your leads.

Reminiscent of a rich chorus effect found in a very popular guitar amp from the mid-70s. A lush, but crystal clear chorus effect with a nod to bucket-brigade-style designs. Adds the depth of a vintage, analog chorus with the sonic clarity of a modern, digital effect.

• Analog, Vintage, and Classic Chorus Effects
• True Bypass with Buffered Bypass Option
• Intuitive Delay Time, Repeats, and Level Controls
• Innovative Dual Path Routing
• Super Compact Design Fits Almost Anywhere
• 9V External Power Required (sold separately)
• Model Number: PRO-AFX-CH2
• Audio I/O: 1/4″ TRS input and output (TRS enables Dual Path Functionality)
• DSP: 32-bit processing
• Bypass: True Bypass with Buffered Bypass Option
• Dimensions: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
• Material: Durable aluminum enclosure
• Current Draw: 53mA, typical
• Power: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative

Analog Signal Path

• Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB

Digital Signal Path

• A/D, D/A conversion: 24-bit | Signal processing: 32-bit
