Description
Three elemental delay types – Analog, Digital, Tape – in one pedal, voiced and mixed in parallel to give your acoustic new rhythms without compromising your tone. Creating echo and delay effects couldn’t be easier. Turn the Delay knob or tap a tempo to get the rhythm and feel for the moment. Any changes in delay time will create a temporary pitch effect, just like the originals that inspired our versions. A Repeats control sets how many echoes you hear while the Level knob blends in the delay alongside your signal and not on top of it. Feel free to dial them up for some wild effects.
Analog: Designed to reproduce the warm, lush character of legendary bucket-brigade delays from the 80’s. You’ll hear the echo’s high frequencies degrade when the Feedback control’s up high, but your acoustic tone will remain unaffected.
Digital: A no-nonsense echo-maker with clear and pronounced repeats.
Tape: We were inspired by the classic echos created by recording sound to tape and playing it back. We hope you are too.

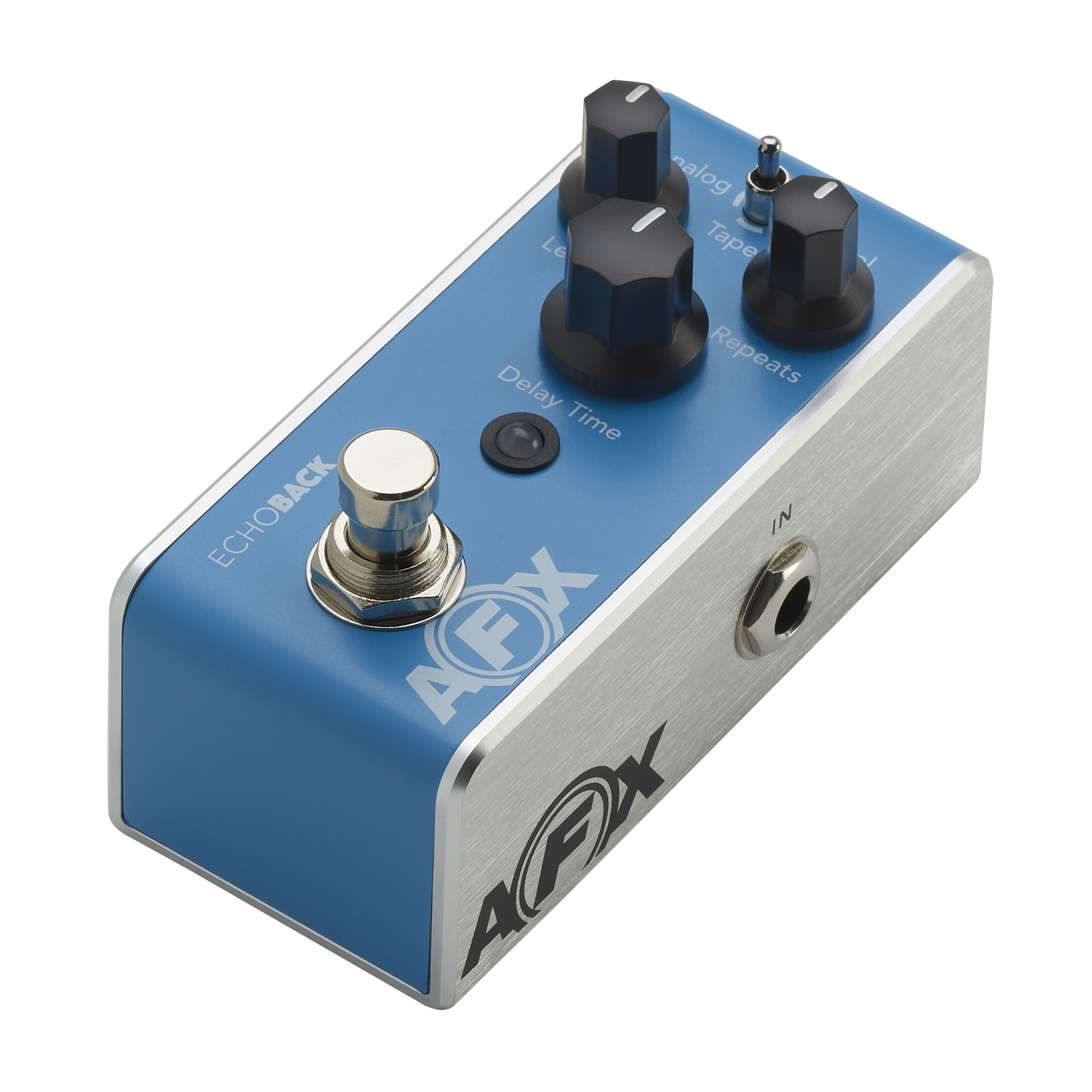

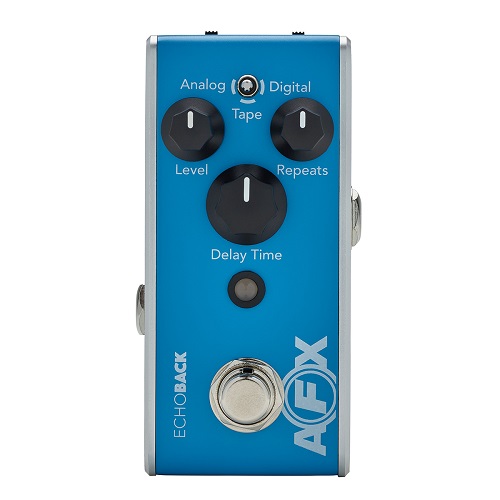

Delay Select: Selection switch offers quick and easy access to 3 delay effects: Analog, Digital, and Tape. Each effect is inspired by popular delays and then voiced to work better with the broad sonics of acoustic instruments.
Tap Tempo: EchoBack lets you tap the footswitch twice to set a tempo rather than turning the Delay Time knob. To do this, hold footswitch for 2 seconds. The LED turns green and flashes the current
tempo. Tap footswitch twice to set a new tempo. After 5 seconds, it exits tap tempo.
Delay Spillover: When the footswitch is pressed to bypass the effect and the LED is unlit, the delay will continue to repeat naturally to avoid an abrupt change in sound. Note that delay spillover will only be effective when the Bypass switch is set to Buffer. To change this to a full mute, hold the footswitch while applying power to the pedal. The LED will flash to confirm this change.
Delay Time: Turn this control to choose a delay time from 0ms to 800ms.
Repeats: Use the Repeats control to set how many echoes you hear.
Level: The Level control mixes the delay in parallel, adding as much or as little echo as you want in addition to your direct sound.
- Analog, Digital, and Tape Delay Effects
- True Bypass with Buffered Bypass Option
- Intuitive Delay Time, Repeats, and Level Controls
- Innovative Dual Path Routing
- Super Compact Design Fits Almost Anywhere
- 9V External Power Required (sold separately)
- Model Number: PRO-AFX-DL2

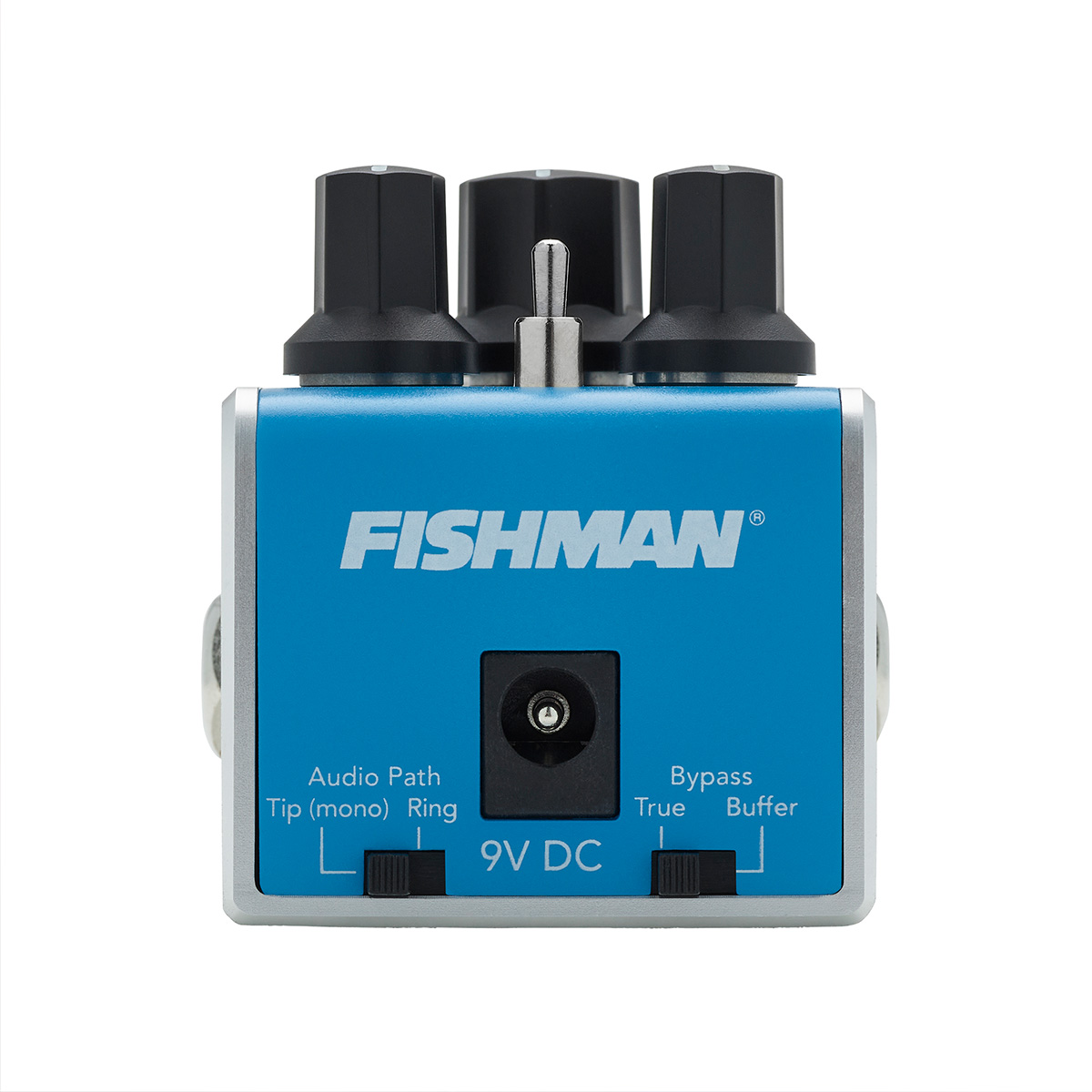

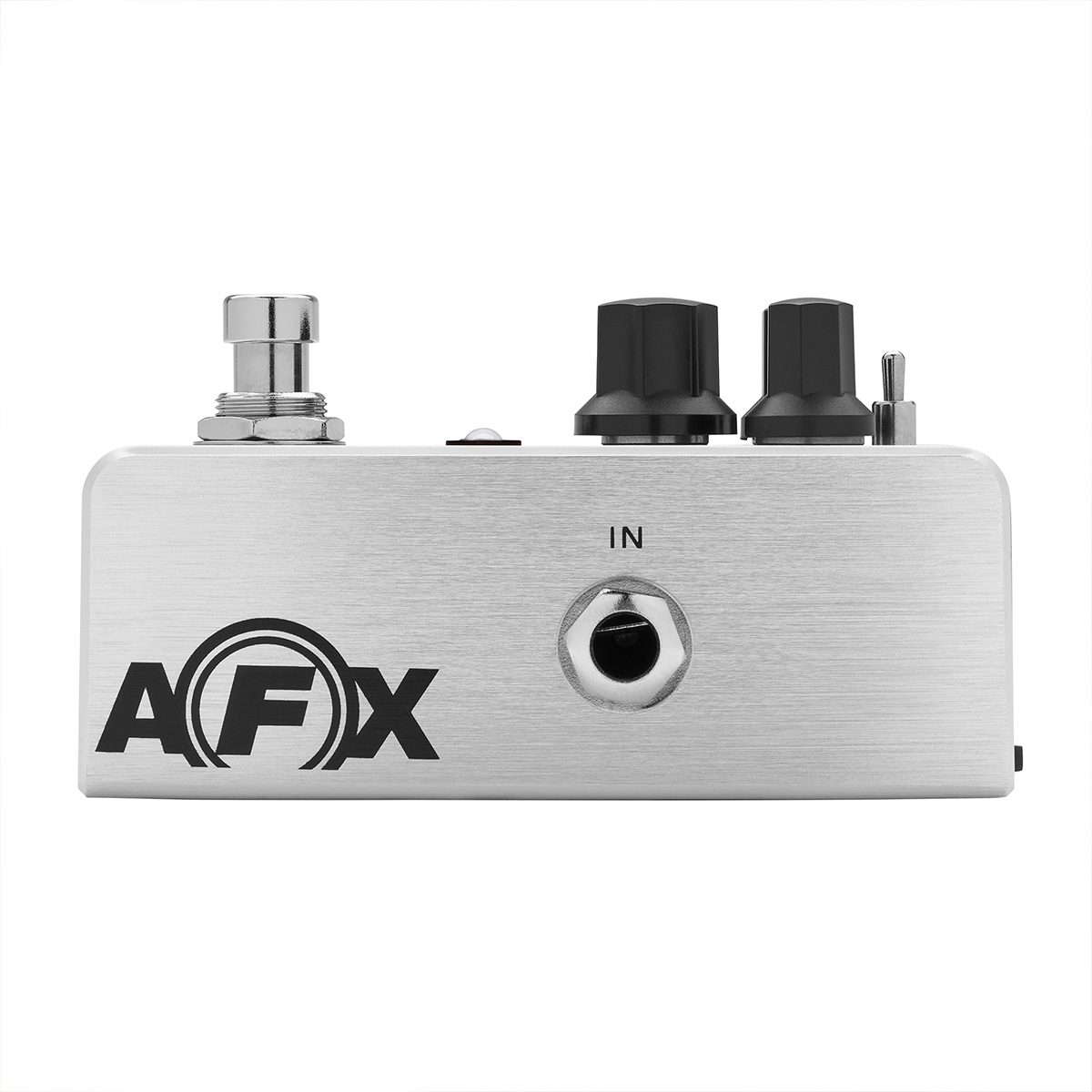

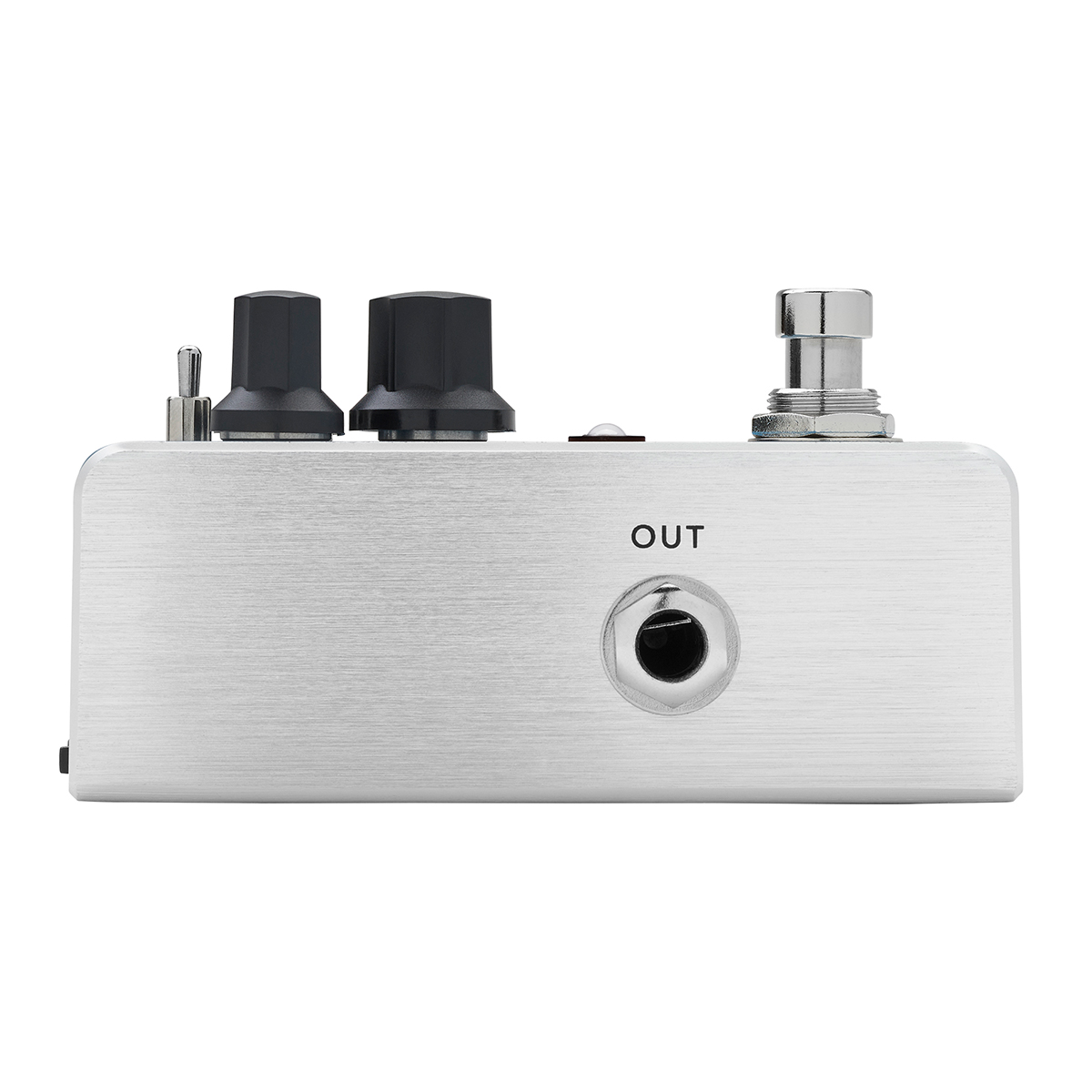

- Audio I/O: 1/4″ TRS input and output (TRS enables Dual Path Functionality)
- DSP: 32-bit processing
- Bypass: True Bypass with Buffered Bypass Option
- Dimensions: 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
- Material: Durable aluminum enclosure
- Current Draw: 53mA, typical
- Power: 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
Analog Signal Path
- Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB
Digital Signal Path
- A/D, D/A conversion: 24-bit | Signal processing: 32-bit
